TPMS DIAGNOSTIC INFORMATION – Chevrolet Silverado, 2004-2020
After the TREAD Act was mandated in 2007, all vehicles manufactured in the United States beginning in 2008, must be installed with direct or indirect TPMS systems.
The Chevrolet Silverado is manufactured with a direct TPMS system. Direct TPMS has TPMS sensors are installed in the wheel; if one or more tires indicate low tire pressure, the TPMS sensors will transfer the information to the vehicle’s ECU. An indicator light (low-line TPMS system) or each tire pressure will show on the dash (high-line TPMS system). A TPMS relearn is recommended after a sensor replacement or tire rotation.
Type of TPMS system:
Direct TPMS, sensors are installed in the wheel
All OE and aftermarket TPMS part numbers and service kit replacement options for the Chevy Silverado can be found in the VT56,VT55, VT46 brands and VT36 TPMS Tools in “Service TPMS”.
Type of TPMS frequency:
315 MHz, years 2004-2018
433 MHz, years 2020
2019 models use both 315 MHz and 433 MHz frequencies
Type of Relearn Procedures:
Manual relearn
Bonus OBD relearn procedure coverage as an option on the VT56 and VT46 brands (Powered by ATEQ), requires OBD module
Type of TPMS tool required for TPMS reset

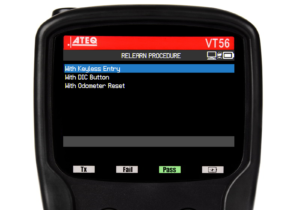

TPMS Diagnostic tool (VT56 or VT46 brands), step by step relearn procedures are written in the tool.
TPMS activation tool (VT56,VT55, VT6, VT31, VT36 and VT46 brands) for a auto relearn, step by step relearn procedures are written in the tool for the VT56, VT55 or VT46 brands and are available to complete a TPMS reset in the owners manual for the VT36, VT31 or VT15 tools.
Bonus coverage, OBD relearn procedure, years 2008-2020:
OBDII dongle is required
Confirm TPMS sensors are properly installed
Adjust tire pressures to placard value
Hold TPMS tool on left front tire sidewall next to the valve stem
Repeat for the right front, right rear and left rear tires
Apply OBD module to the DLC
Turn ignition ON
Press OK on TPMS tool to transfer sensor data to the ECU
Disconnect OBD module from DLC
Turn ignition OFF, then start the engine
The video shows the Chevy Trax, but the same procedure will work with a Chevy Silverado.
Push and hold the trip odometer reset stem on instrument panel until PRESS (✓) TO RELEARN TIRE POSITIONS is displayed
Push (✓) to confirm
Horn sounds 2x and TIRE LEARNING ACTIVE will display
Use the tool to activate the left front sensor
Single horn will sound
Repeat for the RF/RR/LR sensors
Turn ignition OFF
Release parking brake before driving vehicle
Manual relearn procedure (2004-2007):
Adjust tire pressures to placard value
Turn the ignition to ON/RUN with the engine off
Use the MENU button to select the Vehicle Information Menu in the DIC
Use the thumbwheel to scroll to the Tire Pressure Menu Item screen
Press the SET/CLR button to begin the sensor matching process
Press the SET/CLR button again to confirm
Horn will chirp twice and the TIRE LEARNING ACTIVE message displays on the DIC screen
Use the TPMS Tester to activate the left front sensor
Horn will chirp once when the sensor ID has been matched to the left front
Repeat for the RF/RR/LR sensors
Horn will chirp twice to indicate the sensor ID has been matched to the left front and the TPMS sensor matching process is no longer active
The TIRE LEARNING ACTIVE message on the DIC display will turn off
Turn ignition OFF
Manual relearn procedure, Uplevel DIC, 2015-2020:
Confirm TPMS sensors are properly installed
Adjust tire pressures to placard value
Apply parking brake
Turn vehicle to ON/RUN
Scroll the uplevel on the right side of the steering wheel unit Tire Pressure is displayed
Push and hold the Set/Reset button
Horn will chirp twice, DIC displays TIRE LEARNING ACTIVE
Use the tool to activate the left front sensor
Single horn sounds
Repeat for the RF/RR/LR sensors
Horn chirps twice to complete the relearn
Manual relearn procedure, Base Level DIC, 2015-2020:
Confirm TPMS sensors are properly installed
Adjust tire pressures to placard value
Apply parking brake
Turn vehicle to ON/RUN
Push the trip odometer reset stem until Tire Pressure is displayed
Push and hold trip reset stem to begin the sensor matching process
Push trip reset again to confirm
Horn will chirp twice, DIC displays TIRE LEARNING ACTIVE
Use the tool to activate the left front sensor
Single horn sounds
Repeat for the RF/RR/LR sensors
Horn chirps twice to complete the relearn
Troubleshooting tips
Tip 1:
Lowering the driver’s side window may help to complete this process if the relearn fails.
Tip 2:
The owner’s manual on the Chevy Silverado states, “There are two minutes to match the first tire/wheel position, and five minutes overall to match all four tire/wheel positions. If it takes longer, the matching process stops and must be restarted.”
If the horn chirps twice before all steps have been performed or sensors have been activated, the relearn procedure most likely has failed and the IDs did not transfer correctly, which means the procedure has to start over again.
The solution? For most Chevrolet vehicles, the bonus OBD relearn procedure is available for the ATEQ VT56 and VT46 brands, thanks to patented Sync-ID technology. This advanced feature allows the user to perform an OBD relearn to turn the light off, with minimal to no driving time required to turn the light off, saving the technician time and the customer labor costs. It takes two minutes or less to perform an OBD relearn procedure on a Chevy Silverado, and requires just one relearn procedure to memorize for various vehicle Makes.
Tip 3:
Chevy recommends rotating tires every 7,500 miles (12 000 kilometers). Tire rotation helps with even wear for all tires and is important for balanced handling on the road, which can extend the life of tires and save money in the long-run. When tires are rotated, Chevy recommends resetting the TPMS system by performing a TPMS relearn to transfer the new location of the TPMS sensors to the vehicle’s ECU. It is also recommended to do a TPMS reset after a wheel or sensor replacement.
Placard pressure adjustment
Use the VT56 or VT46 branded tools to change placard pressure for the Chevrolet Silverado if upsizing tires/wheels, also when replacing with off-road tires or low-profile tires.
Please note: to determine appropriate placard pressure, always follow the tire load and inflation standards. Maintain the overall circumference to +/-3% of the original size, and the required load rating located on the manufacturing placard. Always refer to the vehicle’s owner’s manual for any specific safety advice regarding the application of replacement tires.
TPMS DTC code information
Use the VT56 to retrieve Chevrolet TPMS DTC codes for direct TPMS systems by selecting the “Service” icon. After selecting the Make, Model, and Year select the DTC code icon. Use the OBDII module to retrieve the Chevrolet DTC TPMS information to diagnose and service the TPMS issues determined.
